C Series
C400-H13

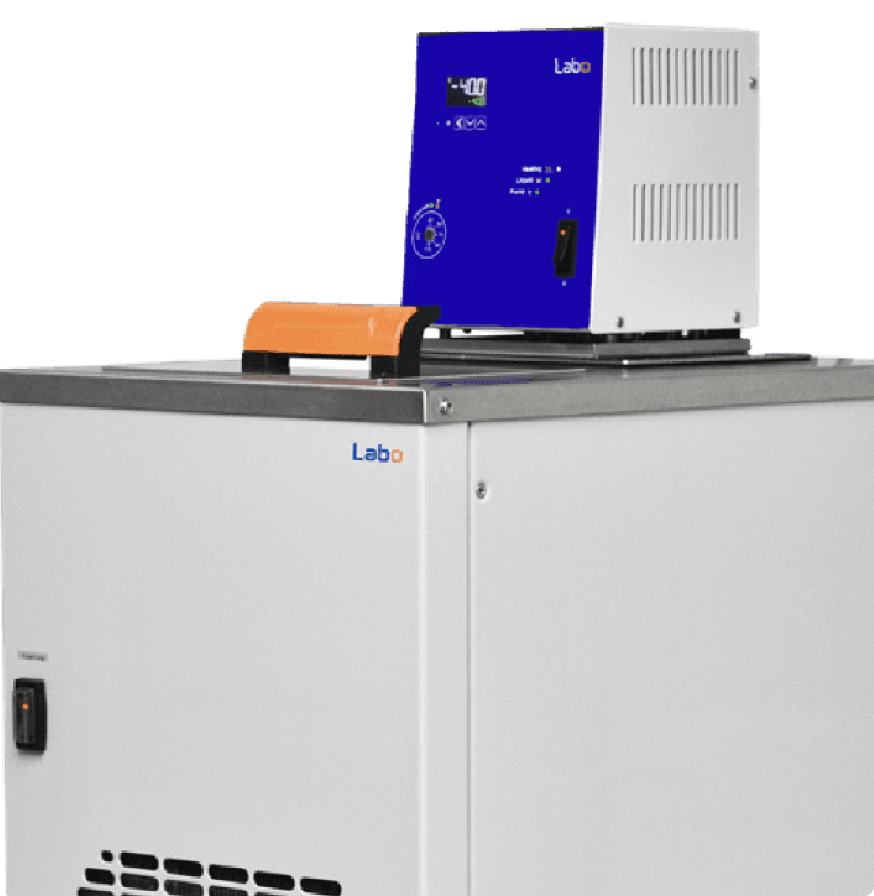

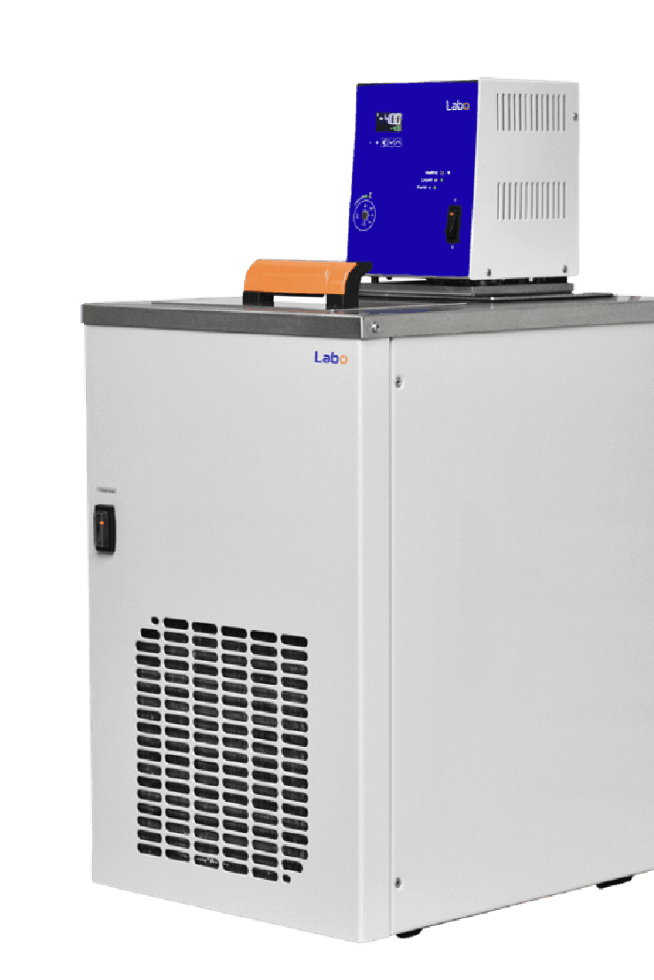

Refrigerated and Heating CirculatorsC (Compact) series circulators are used for precise temperature studies with cooling and heating features. The C series models are preferred for R&D and quality control processes because of their practical structure. Labo C series circulators have a digital PID temperature control system and can be easily viewed even from a long distance with its large size Led LCD screen. Internal liquid circulation feature is standard for all models. If external liquid circulation is requested, please inform to your sales representative to advice models which have external liquid circulation feature. All Labo refrigerated circulators work with environmentally friendly refrigerants (NON CFC) that do not damage the ozone layer.
Features
Operating Temperature Range
-40°C - 100°C
Temperature Stability
±0,03°C
Heating Capacity
1100 watt
Cooling Capacity
470 watt
Circulation Type
Internal + External
Speed-Controlled Pump Flow
5-21 l/min (Adjustable)
Pump Pressure Range
0,1 - 0,6 bar
Bath Opening
140x145 mm
Filling Volume
6 l - 8 l
Overheat Protection & Acoustic Alarm
OTSS
Low Liquid Level Warning System
-
Display Resolution
0,1°C(0,01°C optional)
Stock Code
LABO C400-H13
Product Group
Refrigerated and Heating Circulators
Series
C Series
Application Type
-
Temperature Control Type
New Generation PID
IP Rating
21
Display Type
Digital
Operating Temperature Range
-40°C - 100°C
Temperature Stability
±0,03°C
Heating Capacity
1100 watt
Cooling Capacity
470 watt
Circulation Type
Internal + External
Low Liquid Level Warning System
-
Overheat Protection & Acoustic Alarm
OTSS
Pump Pressure Range
0,1 - 0,6 bar
Pump Connection
Ø10mm pipe connection
Refrigerant
Filling Volume
6 l - 8 l
Bath Material
Stainless Steel
Bath Opening
140x145 mm
Bath Dept
160 mm
Wheeled
Width
315 mm
Length
470 mm
Height
663 mm
Net Weight
39 kg
Gross Weight
45 kg
HS/GTIP Code
84198990
Package Dimensions
390 mm x 390 mm x 390 mm
Power Supply
220-240V / 50-60 Hz
Nominal–Max Power Consumption
-
Max Power Consumption
-
